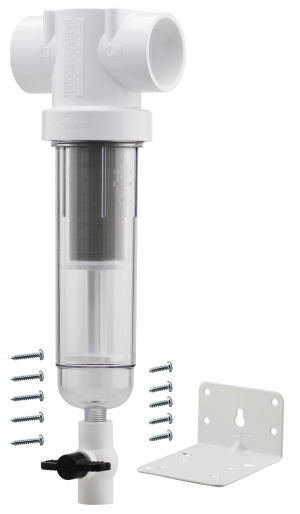

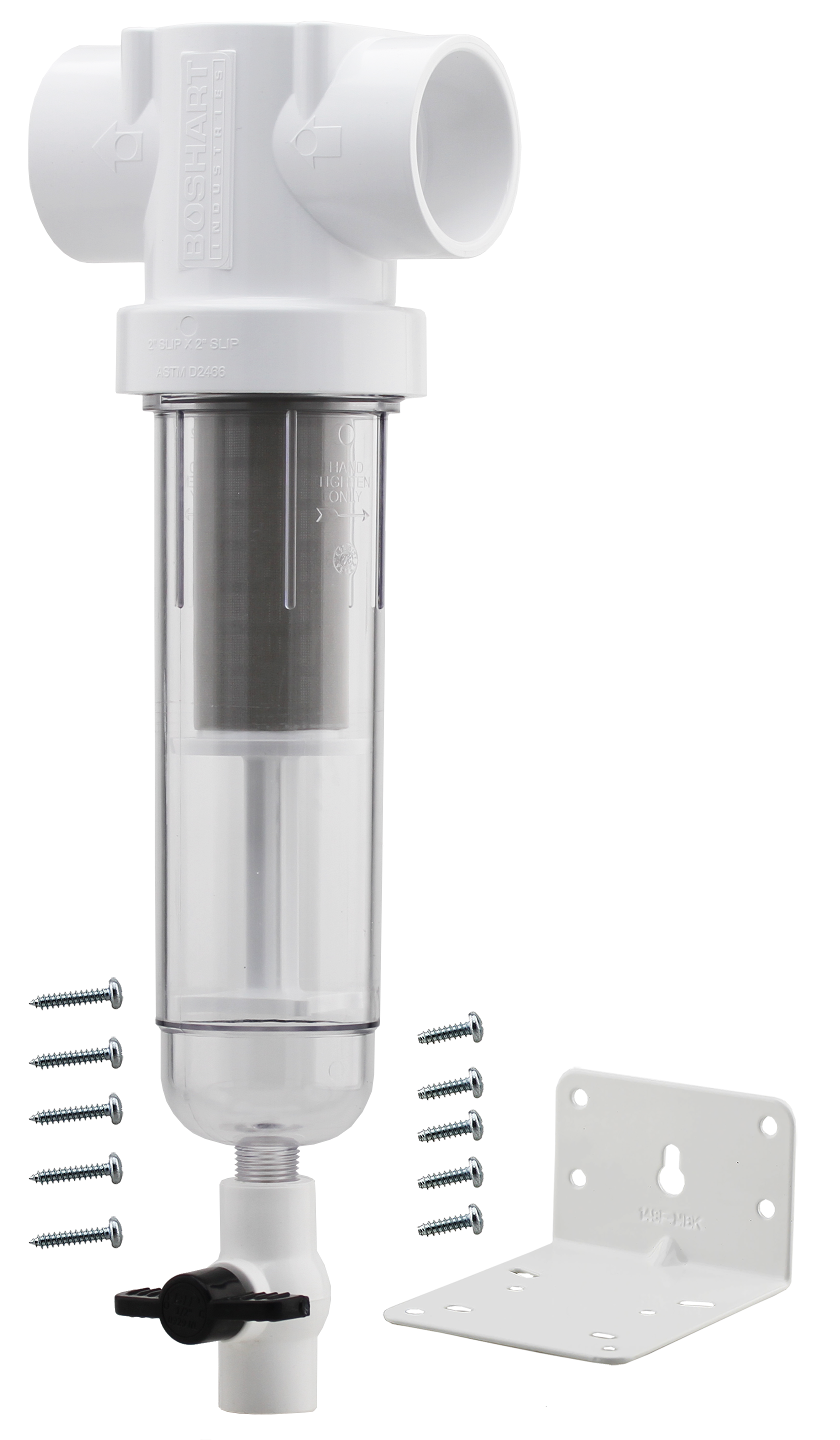

2″ Separator

Boshart’s sediment filters and separators are great for agriculture, industrial/ commercial. pre-treatment, whole house residential and irrigation applications. They are compatible with both schedule 40 & 80 PVC pipe. 1/2″ MPT purge valve is installed to flush the system. These filters / separators can be installed on either the suction or pressure side of the pump. Each unit comes with an element, mounting bracket or clamps and hardware.
• PVC head & polycarbonate bowl.
• Gripper ribs on filter bowl (no tools required to install/remove bowl)

14SFHK-S20SM024
Available In
  • 14SFHK-S20SM024  0.03
  • 14SFHK-S20SM030  0.02
  • 14SFHK-S20SM040  0.02
  • 14SFHK-S20SM060  0.01
  • 14SFHK-S20SM100  0.01
  • 14SFHK-S20SM140  0.00
  • 14SFHK-S20SM200  0.00
  • 14SFHK-S20SM250  0.00
  • 14SFHK-S20SM500  0.00
  • 14SFHK-S20SM1000  0.00

List Price A per unit 14SFHK-S20SM024  0.03

$
Ready to Order?

Contact a customer sales representative

Carton Qty: 4

UPC: 777808502684

Specifications

Flow Rate 18-100 GPM

Mesh 24.00

Size 2"

Bowl Color Clear

Inlet Size 2"

Outlet Size 2"

Opening Size 0.03 INCH

Mesh Material 316 Stainless Steel

Micron Rating 711.00

Connection Type Slip

Temperature Range Up to 100°F (38°C) @ 40 PSI

Filter Housing Type Separator

Maximum Pressure Rating 150 PSI @ 73°F (23°C)

Product Model Short Description Sediment Filter & Separator Housing Kits

Documents

Tech Sheet - 2" Spin-Out Filter Separator Housings & Kits

Dimensions
Width:  5.72 in
Height:  3.98 in
Length:  17.55 in
Weight:  2.33 lb
Certifications

No Lead
NSF / ANSI 372
