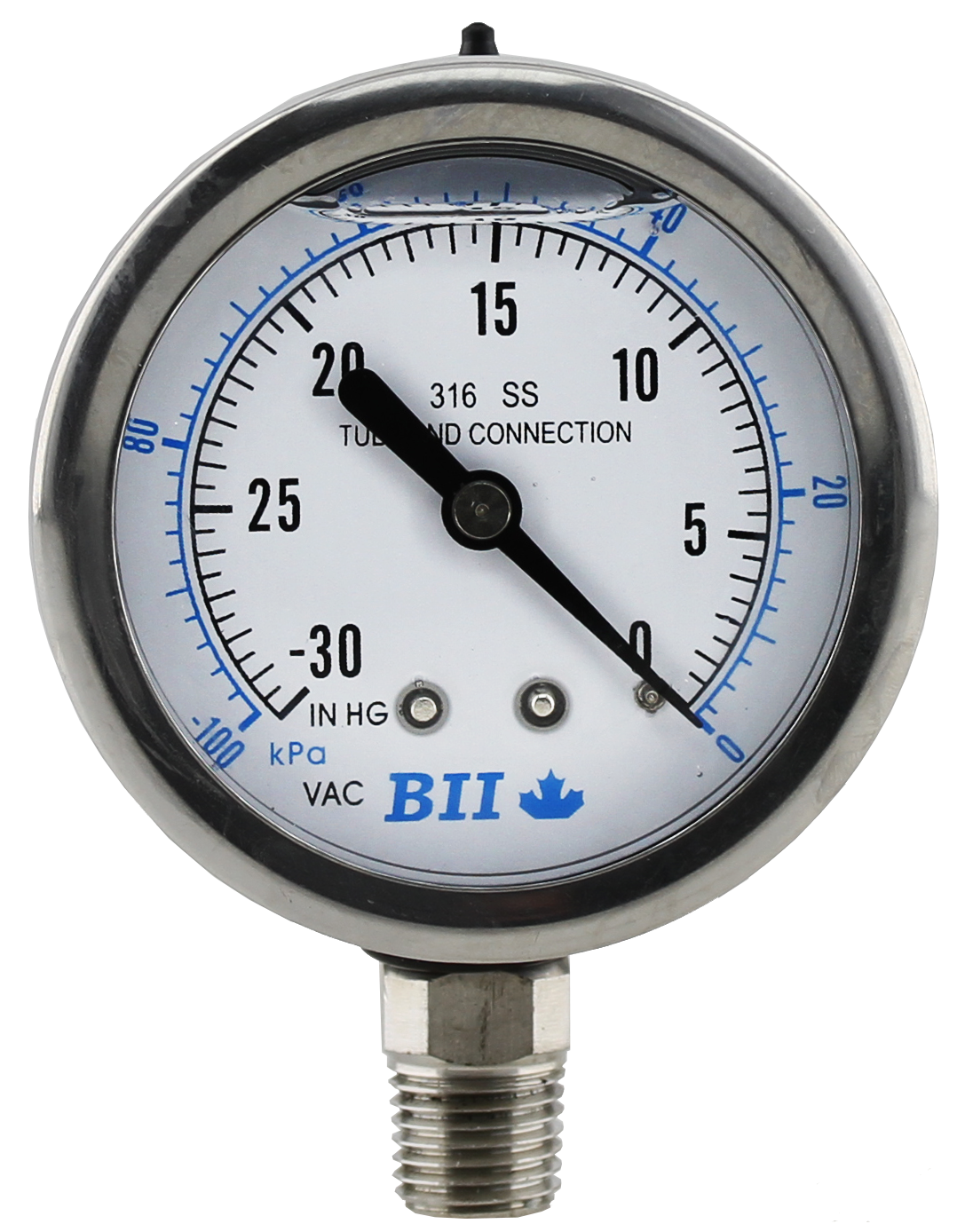

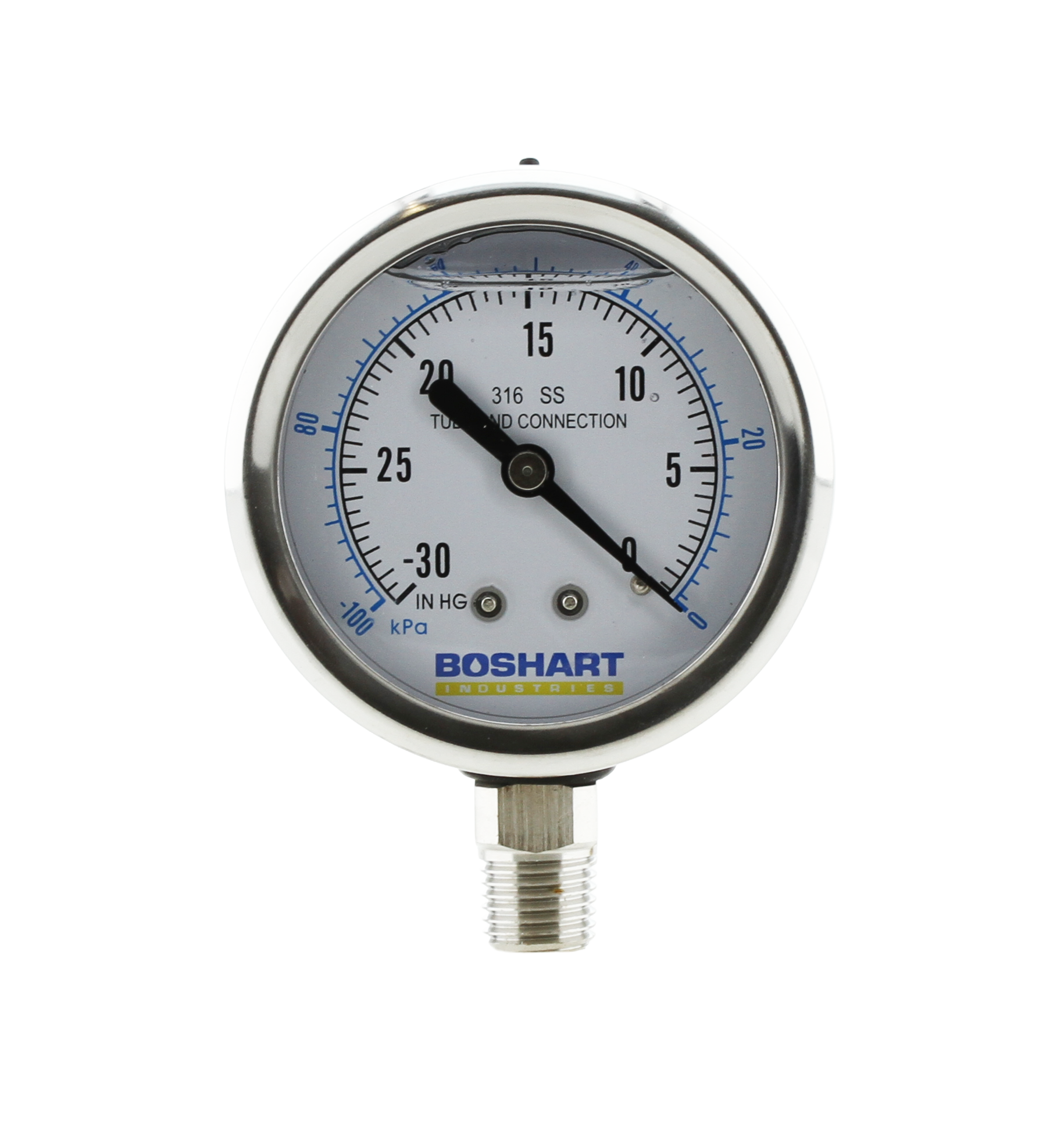

304 Stainless Steel Stainless Steel Liquid Vacuum

These pressure gauges are general purpose but are not for use with oxygen.

PGSV25-30-G
Available In
  • PGSV25-30-G

List Price G per unit PGSV25-30-G

$38.36
Ready to Order?

Contact a customer sales representative

Carton Qty: 50

UPC: 777808142439

Specifications

Description Ideal for use in corrosive environments.

Dial Size 2-1/2"

Fill Glycerine

Gauge Type Liquid Vacuum

Mount Size 1/4"

Mount Type LM

Case Material 304 Stainless Steel

Dial Range PSI 30-0Hg

Accuracy +/- 1.5% Full Scale Value

Temperature Range -4°F to 140°F (-20°C to 60°C)

Connection Material Stainless Steel

Product Model Short Description 2-1/2" - Lower Mount Pressure Gauges

Increments 0.50 PSI

Documents

Tech Sheet - 2.5 Dial Stainless Steel Pressure Gauge - Liquid Filled, Lower Mount

Dimensions
Width:  2.68 in
Height:  1.26 in
Length:  3.54 in
Weight:  0.47 lb
Certifications

No Lead
NSF / ANSI 372
