Asbestos/D.I. x C.I./Plastic

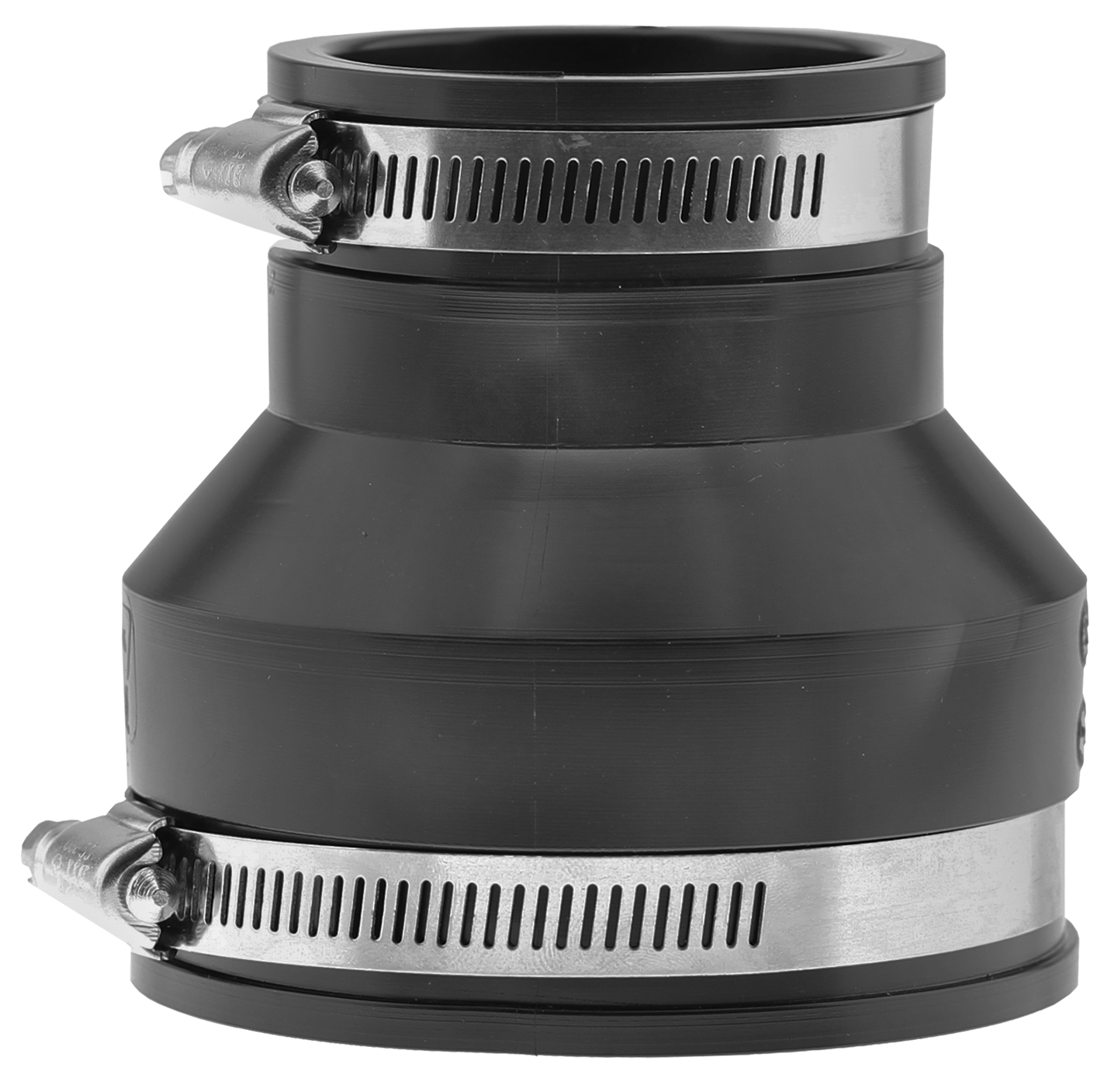

Flexible couplings are for joining dissimilar pipe materials and/or sizes in utility, municipal and plumbing applications, including sewer, drain, waste and vent (DWV) piping applications. Couplings fit over the ends of plain-end or spigot pipe to form a positive seal against infiltration and exfiltration in non-pressure environments. Excellent dimensional flexibility with a tolerance range of approximately ± 5% nominal diameter which allows the coupling to flex with normal earth movement and ensures leak proof seals.
• Couplings are marked with both size and pipe materials for easy identification and installation
• Clamps tighten easily with slotted screwdriver

Available In
  • FRC51-40  4"
  • FRC51-60  6"
  • FRC51-6040  6" x 4"
  • FRC51-6050  6" x 5"

List Price A per unit FRC51-40  4"

$21.63

Contact a customer sales representative

Carton Qty: 25

UPC: 777808470532

Specifications

Size 4"

Fitting Type Coupling

Connection Type Asbestos/D.I. x C.I./Plastic

Primary Material Flexible Elastomeric PVC

Temperature Range Up to 140°F (60°C)

Maximum Pressure Rating Test: 4.3 PSI

Industry Number 1051 / 51

Product Model Short Description Flexible Couplings

Dimensions
Width:  4.80 in
Height:  4.02 in
Length:  4.80 in
Weight:  1.32 lb
Certifications

ANSI / SAE J-1670
ASTM C1173
ASTM C564
CSA B602
No Lead
