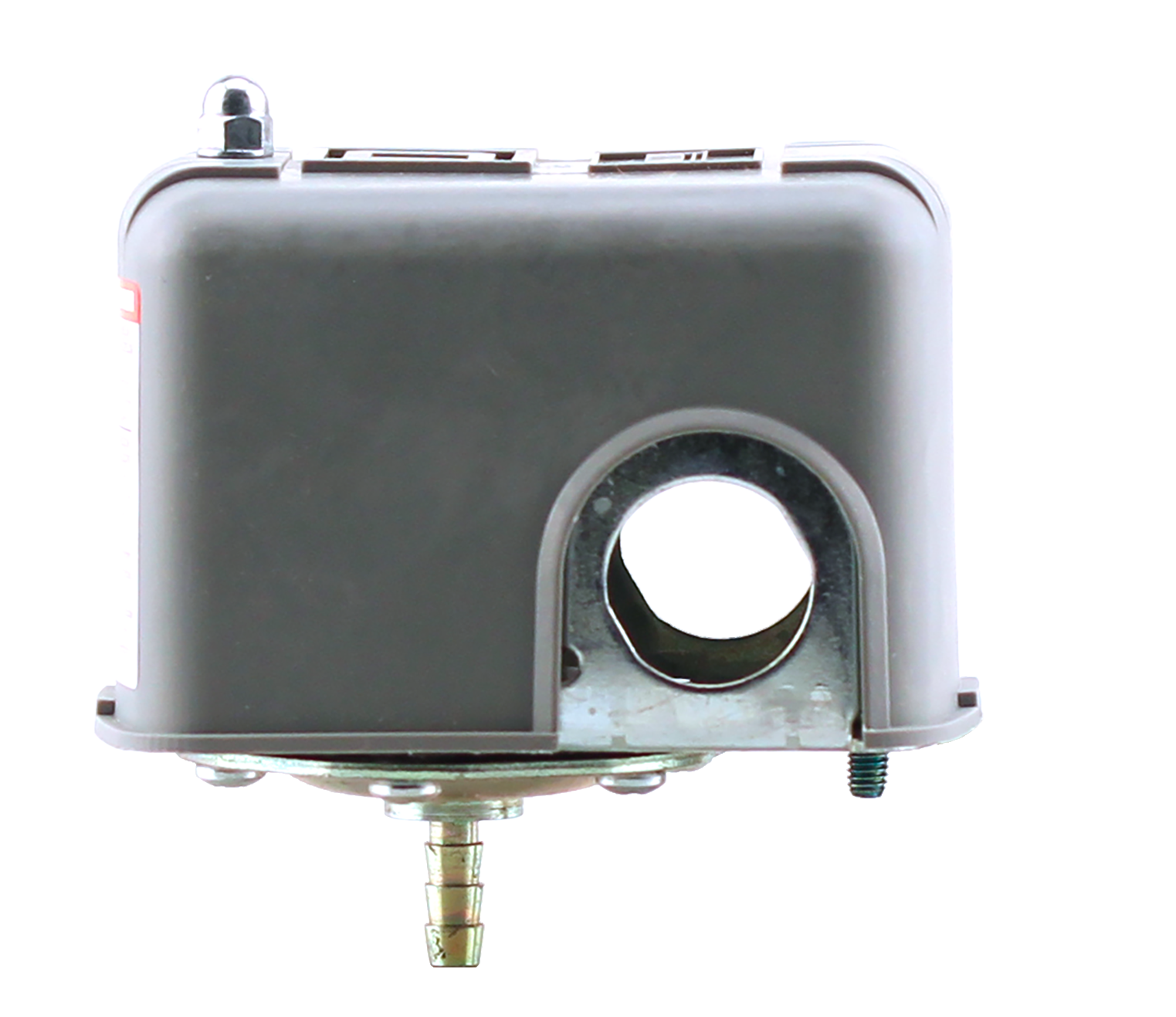

Barb Standard Duty

Designed for the control of electrically driven water pumps. Diaphragm actuated.
• FSG is the standard water pump switch, suitable for all types of pumps: jets, submersible, reciprocating, etc.
• FYG is designed to meet higher horsepower and pressure requirements.
• FRG is reverse acting: contacts open on falling pressure.
Sample part number: Class 9013, Type FSG2, Pressure Code J20, Form C20

9013FSG14J21
Available In
  • 9013FSG14J21  30-50 PSI

List Price A per unit 9013FSG14J21  30-50 PSI

$48.35
Ready to Order?

Contact a customer sales representative

Carton Qty: 1

UPC: 777808099351

Specifications

Pack Type Individual

Size 1/4"

Cut-In Range 5-45 PSI

Cut-Out Range 20-65 PSI

Enclosure Type Nema 1 - General Purpose

Switch Feature Standard Duty

Connection Type Barb

Pressure Setting 30-50 PSI

Differential 15-30 PSI

Polyphase Electrical Rating 1hp @ 460/575V

Product Model Short Description Small Water Pump Pressure Switches

Dimensions
Width:  3.70 in
Height:  3.50 in
Length:  3.76 in
Weight:  1.00 lb
Certifications

No Lead
NSF / ANSI 372
