Clear #14 to #10

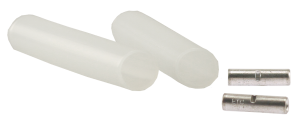

Boshart’s heavy duty heat shrink kit series are make of flexible cross-linked polyolefin heat shrinkable tubing. This tubing is suitable for applications up to 600 volts providing excellent waterproof insulating and environmental sealing protection for splices, connections and jacket repairs. The high impact and abrasion resistance of this heavy wall tubing provides the highest level of mechanical durability. When heated above 120°C (250°F) there is a 3:1 shrink ratio.

Available In
  • HSC-2  2.00 (#14 - #10)
  • HSC-3  3.00 (#14 - #10)
  • HSC-3-4  4.00 (#14 - #10)
  • HSC-4  4.00 (#14 - #10)

List Price A per unit HSC-2  2.00 (#14 - #10)

$2.80

Contact a customer sales representative

Carton Qty: 50

UPC: 777808052493

Specifications

Colour Clear

Expanded ID 0.40 INCH

Tube Length 3.00 INCH

Recovered ID 0.15 INCH

Wire Size AWG #14 to #10

Number of Stakons 2 (#14 - #10)

Wall Thickness 0.08 INCH

Number of Shrink Tubes 2.00

Product Model Short Description Heavy Duty Heat Shrink Kits

Dimensions
Width:  4.90 in
Height:  6.05 in
Length:  0.55 in
Weight:  0.03 lb
Certifications

No Lead
RoHS
