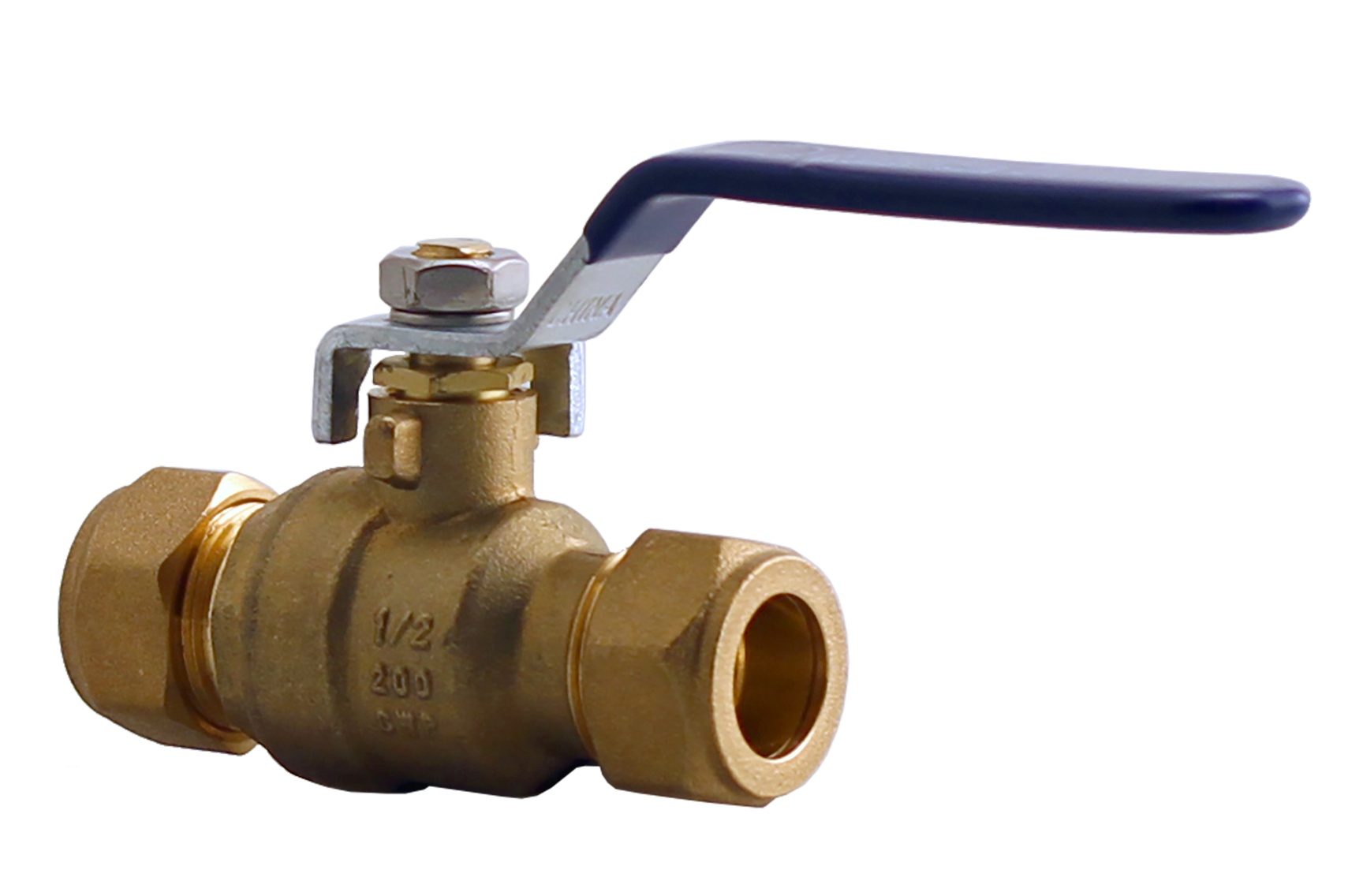

Comp Standard Port No Lead

Boshart’s Brass Ball Valves are an excellent choice for a variety of applications where there is low risk of corrosion. Most connections come in both a leaded and no lead version to accommodate for potable water.

082CPND-05NL
Available In
  • 082CPND-05NL  1/2"
  • 082CPND-07NL  3/4"
  • 082CPND-10NL  1"

List Price I per unit 082CPND-05NL  1/2"

$20.67
Ready to Order?

Contact a customer sales representative

Carton Qty: 10

Case Qty: 100

UPC: 777808440764

Specifications

Description Note: Can be used to make connections between Copper, Brass, Aluminum, Plastic, CPVC & Pex tubing. Not recommended for use with steel tubing, designed for use with tube manufactured to CTS-OD tubing.

Ball Material Chrome Plated

Size 1/2"

Handle Type Rubber Grip

Design Standard Port

Seat Material PTFE

Connection Type Comp

Primary Material Brass

Temperature Range Up to 300°F (149°C)

Maximum Pressure Rating 200 PSI CWP

Stem Packing Material PTFE

Product Model Short Description Brass Ball Valves

Port Size 0.59 INCH

Documents

Tech Sheet - No Lead Brass Ball Valve With & Without Drain (Compression)

Dimensions
Width:  2.99 in
Height:  2.44 in
Length:  5.31 in
Weight:  0.56 lb
Certifications

cUPC Standard IGC 157
No Lead
NSF / ANSI 372
NSF / ANSI 61
