Comp Standard Port No Lead

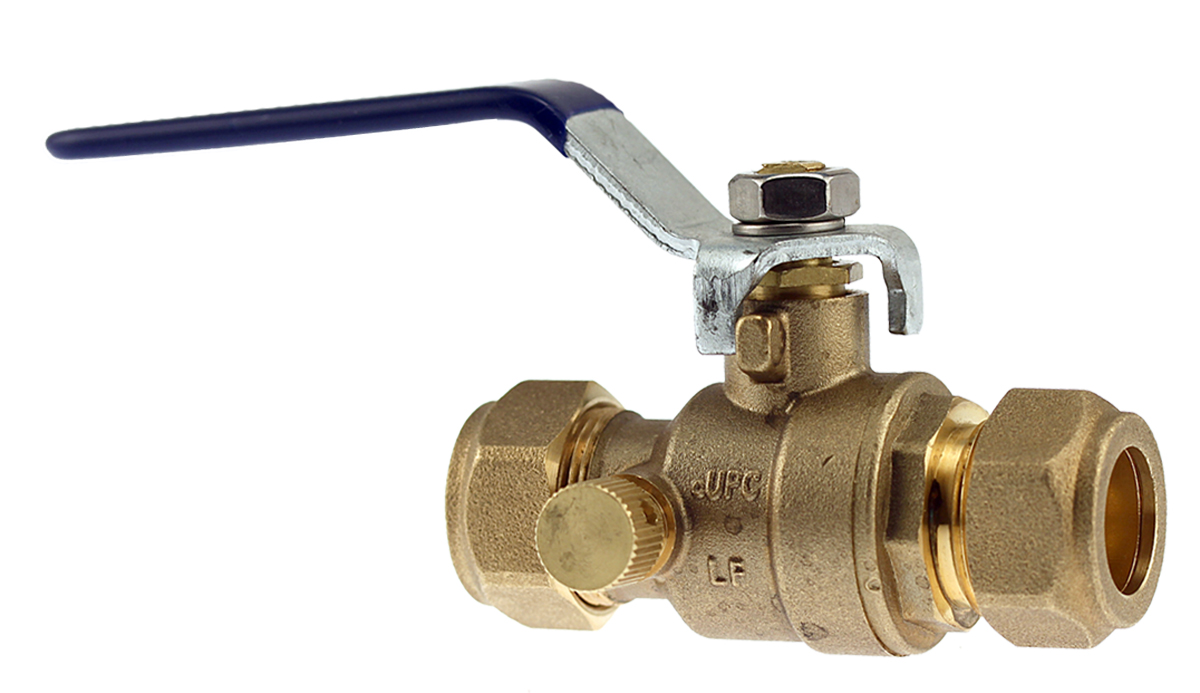

Boshart’s Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve. When installing one of these valves make sure the drain is not installed on the supply side of the valve.

082CP-05NL
Available In
  • 082CP-05NL  1/2"
  • 082CP-07NL  3/4"
  • 082CP-10NL  1"

List Price I per unit 082CP-05NL  1/2"

$21.81
Ready to Order?

Contact a customer sales representative

Carton Qty: 10

Case Qty: 100

UPC: 777808440733

Specifications

Description Note: Can be used to make connections between Copper, Brass, Aluminum, Plastic, CPVC & Pex tubing. Not recommended for use with steel tubing, designed for use with tube manufactured to CTS-OD tubing.

Ball Material Chrome Plated

Size 1/2"

Handle Type Rubber Grip

Design Standard Port

Seat Material PTFE

Connection Type Comp

Primary Material Brass

Temperature Range Up to 300°F (149°C)

Maximum Pressure Rating 200 PSI CWP

Stem Packing Material PTFE

Product Model Short Description Brass Ball Valves with Drain

Port Size 0.59 INCH

Documents

Tech Sheet - No Lead Brass Ball Valve With & Without Drain (Compression)

Dimensions
Width:  3.03 in
Height:  1.77 in
Length:  4.72 in
Weight:  0.59 lb
Certifications

cUPC Standard IGC 157
No Lead
NSF / ANSI 372
NSF / ANSI 61
