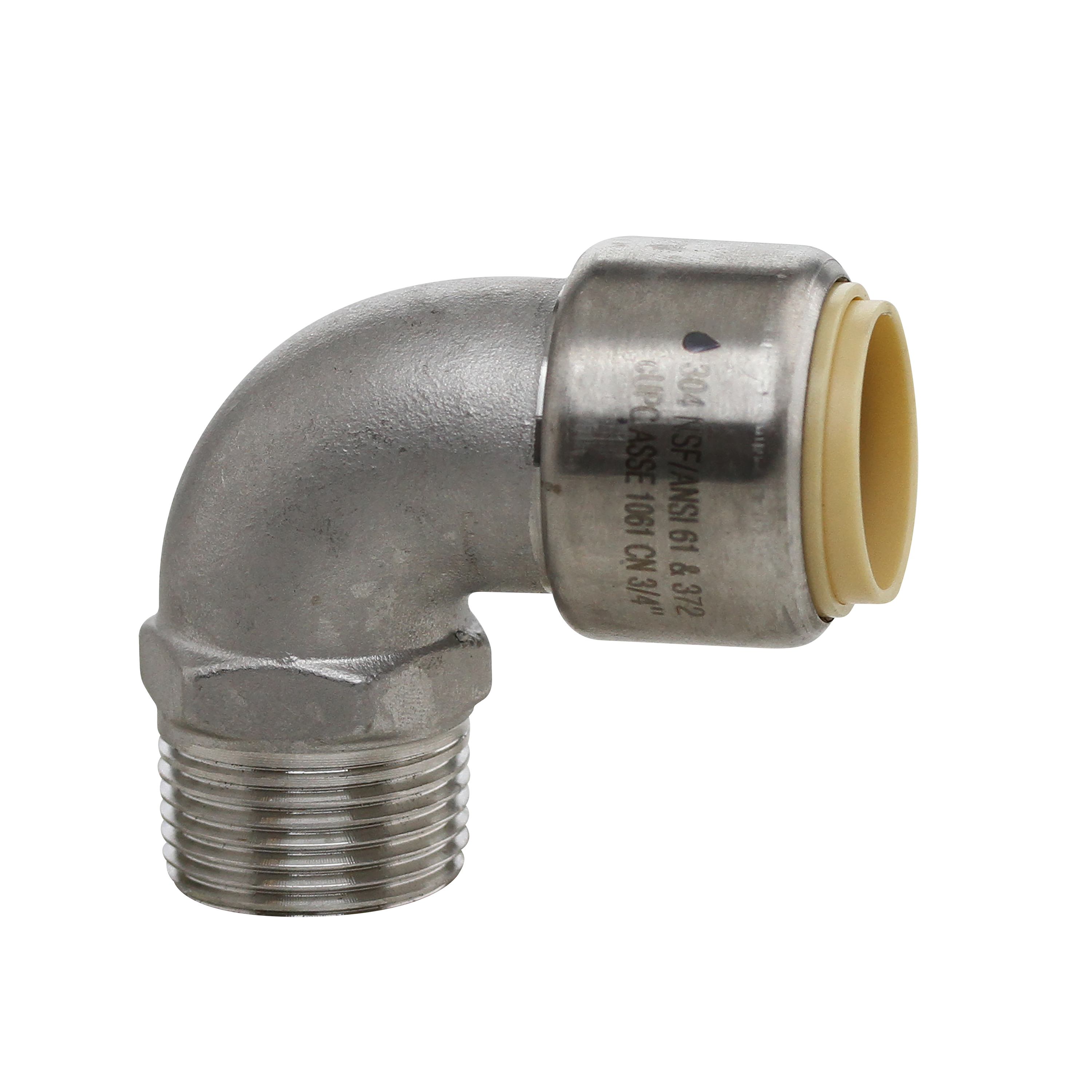

CTS x MPT 90° Elbow

SSPF Series Stainless Steel Push Fit fittings are versatile and reliable, designed for use with copper, CPVC, PEX, PE-RT & HDPE piping in plumbing and hydronic heating systems. Approved for behind-the-wall installations with or without access panels, and underground applications (with proper wrapping to prevent corrosion). These fittings are ideal for potable and non-potable water use. They eliminate the need for soldering, crimping, or solvent welding, making them perfect for repairs in wet, hazardous, or hard-to-reach locations where open flames pose a fire risk. The fittings come complete with stiffeners* for PEX piping, which can be removed for copper installations. Additionally, the fittings are reusable and easily disassembled using the plastic disconnect tool.
*excludes Repair Couplings (To be used with Copper and CPVC pipe only)

Available In
  • SSPF-ME05  1/2"
  • SSPF-ME07  3/4"

List Price A per unit SSPF-ME05  1/2"

$10.34

Contact a customer sales representative

Carton Qty: 12

Case Qty: 120

Specifications

Short Description 304 Stainless Steel Push-Fit Male 90º Elbow

Size 1/2"

Fitting Type 90° Elbow

Connection Type CTS x MPT

Primary Material 304 Stainless Steel

Temperature Range Up to 200°F (93°C)

Maximum Pressure Rating 300 PSI

Product Model Short Description Stainless Steel Push-Fit Fittings

Dimensions
Width:  1.05 in
Height:  1.40 in
Length:  2.50 in
Weight:  0.19 lb
Certifications

No Lead
NSF / ANSI 372
NSF / ANSI 61
cUPC Standard ASSE 1061 Certified
