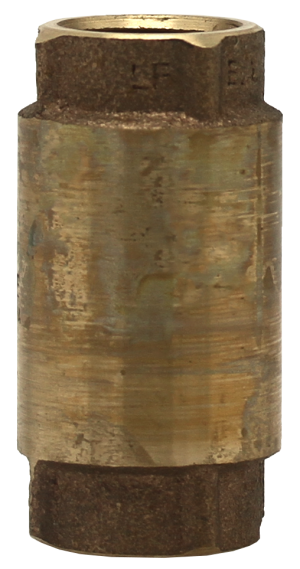

FPT Boshart Nitrile Rubber Standard

Bronze check valves ensure that fluid flows in one direction only.

17CV050NL
Available In
  • 17CV050NL  1/2"
  • 17CV075NL  3/4"
  • 17CV100NL  1"
  • 17CV125NL  1-1/4"
  • 17CV150NL  1-1/2"
  • 17CV200NL  2"

List Price A per unit 17CV050NL  1/2"

$16.94
Ready to Order?

Contact a customer sales representative

Carton Qty: 10

Case Qty: 100

UPC: 777808438761

Specifications

Description NSF / ANSI 61 & 372 Certified (17CVMF-125-100NL is not covered by these certifications but is Lead Free Certified to the standard Section 1417(d) of safe drinking water act

Size 1/2"

Valve Body Standard

Seal Material Nitrile Rubber

Connection Type FPT

Poppet Material Cast Bronze

Primary Material Bronze

Temperature Range Up to 180°F (82°C)

Maximum Pressure Rating 200 PSI

Product Model Short Description Bronze Check Valves

Documents

Tech Sheet - 17CVNL Series

Dimensions
Width:  1.10 in
Height:  2.40 in
Length:  1.15 in
Weight:  0.41 lb
Certifications

No Lead
NSF / ANSI 61 & 372
