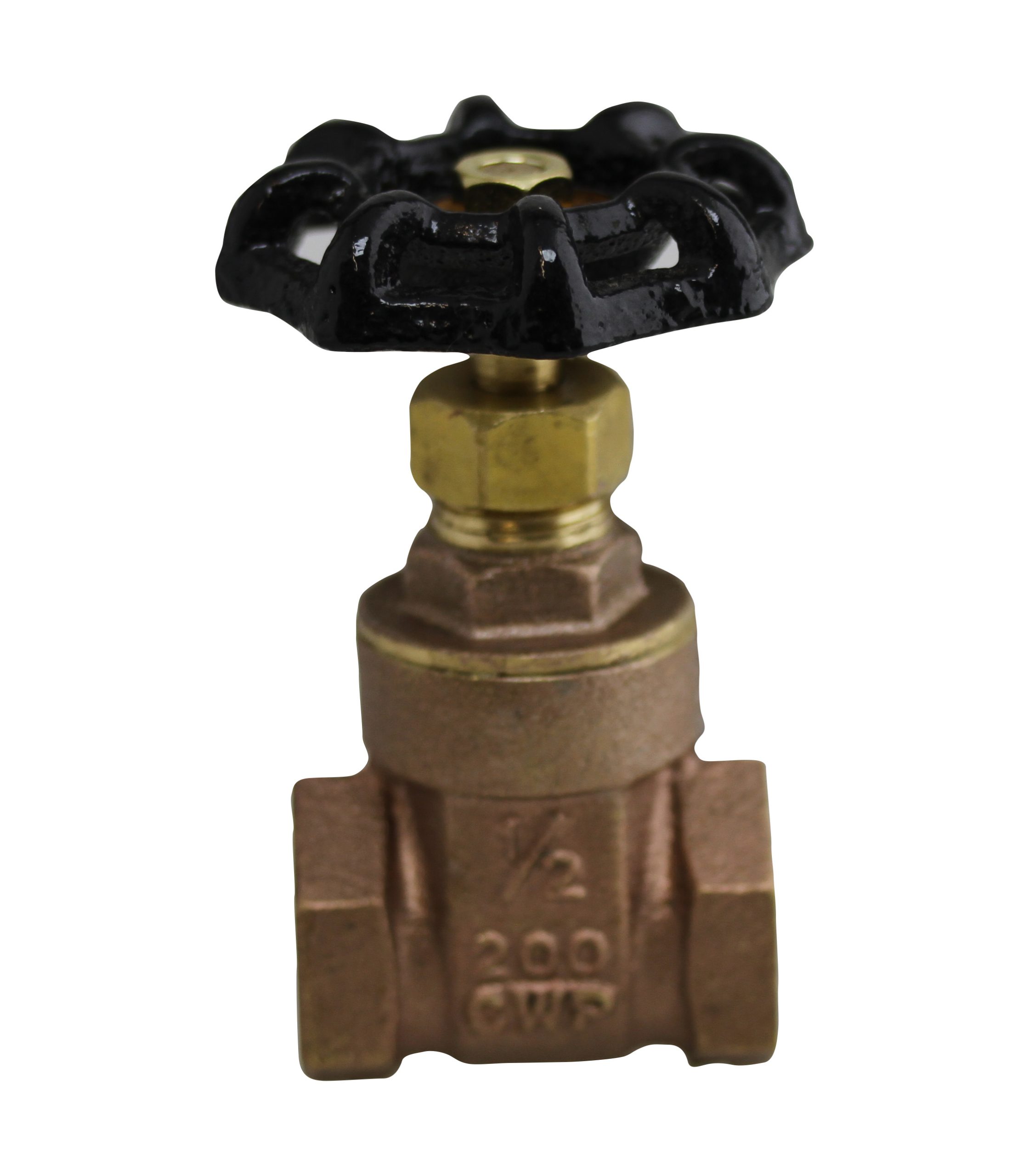

FPT Full Port Leaded

Brass gate valves are used to shut off water supply. They are an excellent choice where this needs to be done slowly by turning the black hand wheel. No lead options are available for potable water applications.

Available In
  • 0818-05  1/2"
  • 0818-07  3/4"
  • 0818-10  1"
  • 0818-12  1-1/4"
  • 0818-15  1-1/2"
  • 0818-20  2"
  • 0818-25  2-1/2"
  • 0818-30  3"
  • 0818-40  4"

List Price I per unit 0818-05  1/2"

$14.13

Contact a customer sales representative

Carton Qty: 10

Case Qty: 120

UPC: 777808004201

Specifications

Size 1/2"

Handle Type Black Cast Hand Wheel

Design Full Port

Connection Type FPT

Primary Material Brass

Temperature Range Up to 150°F (66°C)

Maximum Pressure Rating 200 PSI CWP

Stem Packing Material PTFE

Product Model Short Description Brass Gate Valves

Port Size 0.53 INCH

Dimensions
Width:  2.05 in
Height:  2.10 in
Length:  3.45 in
Weight:  0.62 lb
Certifications
N/A
