FPT x Compression

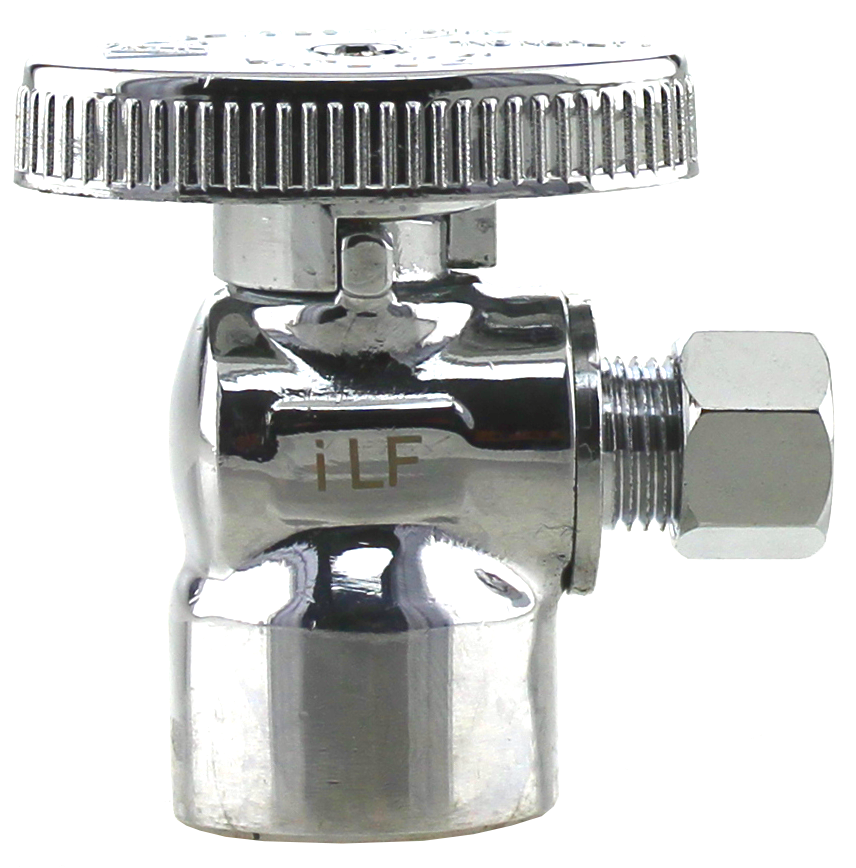

Supply stops are an excellent low pressure shut off valve generally found at appliances. They come in different connections and configurations to meet all needs.

Available In
  • 08SVA-05F02CPNL  1/2" x 1/4"

List Price I per unit 08SVA-05F02CPNL  1/2" x 1/4"

$8.63

Contact a customer sales representative

Carton Qty: 20

Case Qty: 240

UPC: 777808440818

Specifications

Size 1/2" x 1/4"

Design Ice Maker

Connection Type FPT x Compression

Inlet Connection FPT

Outlet Connection Comp

Temperature Range Up to 180°F (82°C)

Maximum Pressure Rating 125 PSI

Product Model Short Description Ice Maker Chrome Plated Supply Stops

Dimensions
Width:  2.05 in
Height:  1.06 in
Length:  1.97 in
Weight:  0.18 lb
Certifications

ANSI / ASME B1.20.1
CSA B125.1 Certified
No Lead
NSF / ANSI 372
NSF / ANSI 61
SAE J512
