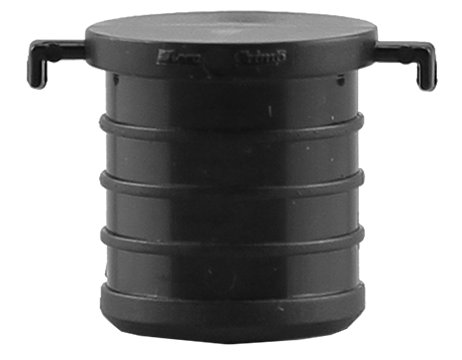

Crimp PEX Plug

Crimp PEX fittings are resistant to chemicals in corrosive and aggressive water conditions. They are designed for use in ASTM F2159 PEX cold and hot water distribution systems using SDR9 PEX tubing. There are integral locating tabs to ensure tubing and fitting are installed properly which eliminates faulty crimp connections.

Available In
  • 710P-P05  1/2"
  • 710P-P07  3/4"
  • 710P-P10  1"

List Price J per unit 710P-P05  1/2"

$1.10

Contact a customer sales representative

Carton Qty: 25

Case Qty: 1000

UPC: 777808480166

Specifications

Size 1/2"

Colour Black

Fitting Type Plug

Connection Type Crimp PEX

Primary Material Polyphenylsulfone

Temperature Range Up to 180°F (82°C)

Maximum Pressure Rating 100 PSI

Product Model Short Description Poly-Alloy Crimp PEX Fittings

Dimensions
Width:  0.50 in
Height:  0.55 in
Length:  0.85 in
Weight:  0.01 lb
Certifications

ASTM F877 / F2159
CSA B137.5
No Lead
NSF / ANSI 14
NSF / ANSI 372
NSF / ANSI 61
