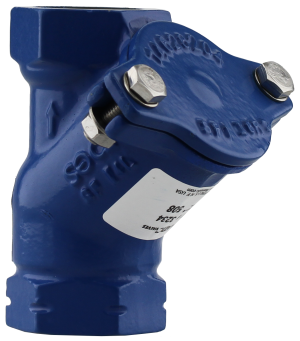

Phenolic Cast Iron

Ball check valves ensure that fluid flows in one direction only. This is done by using a weighted ball to stop the flow when the pressure of the flow decreases preventing backflow.

172044
Available In
  • 172044.00  3"
  • 172045.00  4"
  • 173232.00  1"
  • 173233.00  1-1/4"
  • 173234.00  1-1/2"
  • 173235.00  2"
  • 173236.00  2-1/2"

List Price A per unit 172044.00  3"

$
Ready to Order?

Contact a customer sales representative

UPC: 777808373253

Specifications

Description Note: 3" & 4" don't have an access cover.

Ball Material Phenolic

Size 3"

Connection Type FPT

Primary Material Cast Iron

Temperature Range Up to 180°F (82°C)

Maximum Pressure Rating 150 PSI

Product Model Short Description Ball Check Valves

Dimensions
Width:  6.75 in
Height:  11.63 in
Length:  7.13 in
Weight:  30.00 lb
Certifications

No Lead
NSF / ANSI 372
