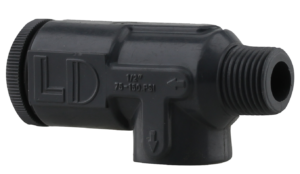

PVC Factory Pre-Set 75.000

Boshart’s relief valves are recommended for all cold water system installations to protect against damage to piping and pressure tanks. Field adjustments are not recommended for these relief valves. Any changes made to the pre-set pressure is entirely at the risk of the person(s) / company who make the adjustment. Relief valves must be installed so that they drain to a floor drain, sump or other safe location with an air break. If an outlet pipe is used then it must be at least the same diameter as the relief valve outlet.

Available In
  • PVCRVN05-75150  1/2"

List Price A per unit PVCRVN05-75150  1/2"

$10.15

Contact a customer sales representative

Carton Qty: 20

Case Qty: 120

UPC: 777808374748

Specifications

Description • Adjustable to 150 PSI

Size 1/2"

Design Standard

Spring Material Stainless Steel

Inlet Connection MPT

Primary Material PVC

Accuracy +/- 15%

Outlet Connection FPT

Product Model Short Description Relief Valves

Factory Pre-Set 75.00 PSI

Dimensions
Width:  1.55 in
Height:  1.30 in
Length:  3.40 in
Weight:  0.18 lb
Certifications

No Lead
