Standard Duty

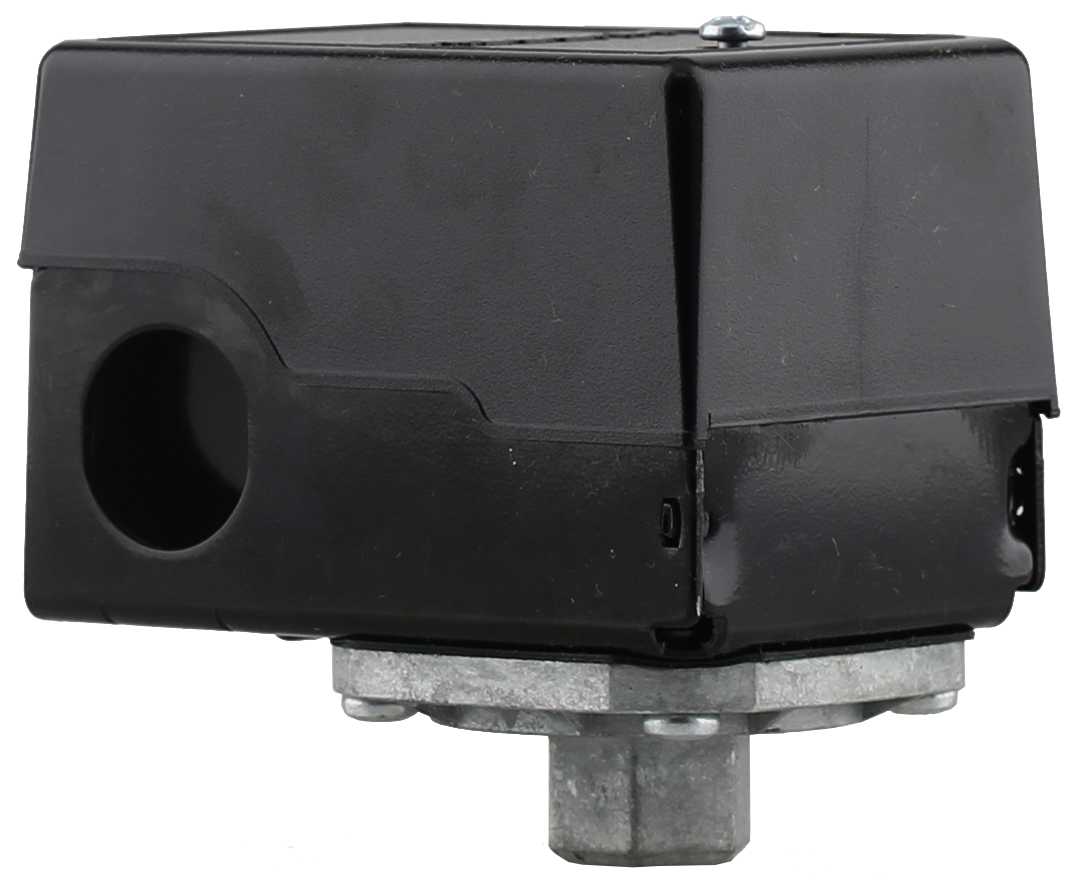

Designed to be the most adaptable switch on the market, the 69J offers the user the flexibility to build the pressure switch around the compressor–not the other way around. The unloader can be mounted on the front or either side, and can be rotated to any of eight different positions allowing for quicker assembly and shorter tubing. Bottom cable entry is also available with unique built-in clamping strain relief for even quicker assembly. With thousands of variations right off the production line, the 69J provides maximum flexibility at minimum cost.

Available In
  • 69JF6  80-100 PSI
  • 69JF7  95-125 PSI
  • 69JF8  115-150 PSI
  • 69JG6  80-100 PSI
  • 69JG7  95-125 PSI
  • 69JG8  115-150 PSI

List Price A per unit 69JF6  80-100 PSI

$77.43

Contact a customer sales representative

Carton Qty: 56

UPC: 777808024131

Specifications

Size 1/4"

Cut-Out Range 70-110 PSI

Switch Feature Standard Duty

Connection Type FPT

Pressure Setting 80-100 PSI

DC Electrical Rating 1/4hp @ 32-230V

Differential 15-25 PSI

Polyphase Electrical Rating 3hp @ 240V

Single Phase Electrical Rating 1-1/2hp @ 120V, 2hp @ 240V

Product Model Short Description Air System Switches

Dimensions
Width:  2.25 in
Height:  3.50 in
Length:  3.50 in
Weight:  0.81 lb
Certifications
N/A
