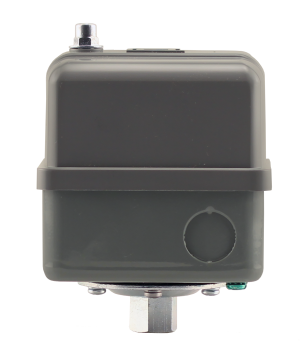

Standard Duty Nema 1 – General Purpose

Class 9013 Type G Pumptrol pressure switches are designed to control electrically driven water pumps and air compressors. These devices cover higher electrical ratings for directly controlling motors in pump and compressor applications.
• Contacts open on pressure rise
• Diaphragm actuated
Sample part number: Class 9013, Type GHG2, Pressure Code J30, Form X

Available In
  • 9013GHG2J25  60-80 PSI
  • 9013GHG2J30  80-100 PSI
  • 9013GHG2J31  90-120 PSI
  • 9013GHG2J33  50-70 PSI
  • 9013GHG2J53  100-125 PSI
  • 9013GHG2J57  120-150 PSI
  • 9013GHG2J58  125-150 PSI
  • 9013GHG2J62  140-175 PSI
  • 9013GHG2J63  145-175 PSI
  • 9013GSG2J20  20-40 PSI
  • 9013GSG2J21  30-50 PSI
  • 9013GSG2J24  40-60 PSI
  • 9013GSG2J25  60-80 PSI
