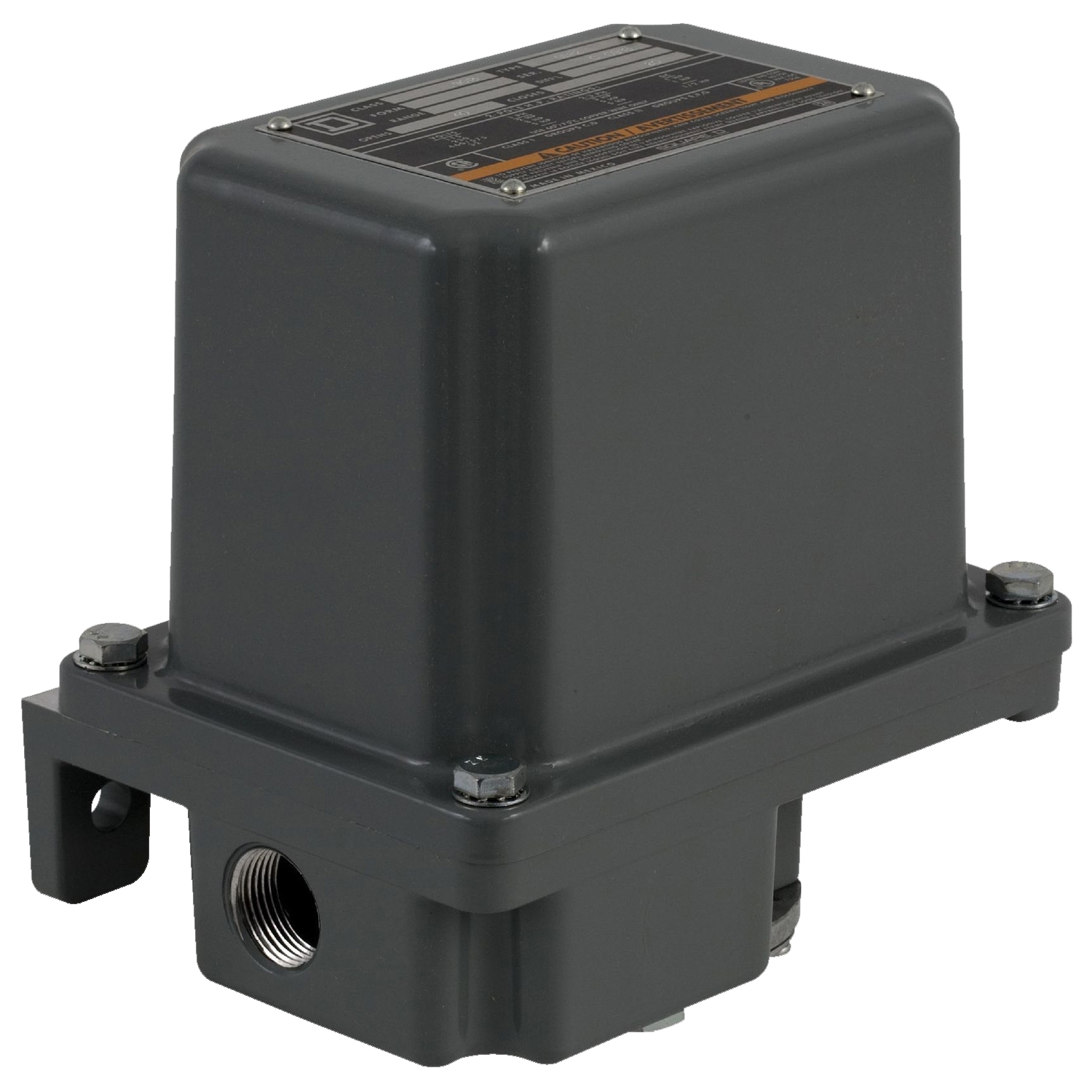

Standard Duty Nema 7&9 – Hazardous Location

Class 9013 Type G Pumptrol pressure switches are designed to control electrically driven water pumps and air compressors. These devices cover higher electrical ratings for directly controlling motors in pump and compressor applications.
• Contacts open on pressure rise
• Diaphragm actuated
Sample part number: Class 9013, Type GHG2, Pressure Code J30, Form X

9013GSR2J20
Available In
  • 9013GSR2J20  20-40 PSI

List Price A per unit 9013GSR2J20  20-40 PSI

$1014.80
Ready to Order?

Contact a customer sales representative

Carton Qty: 1

UPC: 777808075850

Specifications

Size 1/4"

Cut-In Range 5-50 PSI

Cut-Out Range 20-80 PSI

Enclosure Type Nema 7&9 - Hazardous Location

Switch Feature Standard Duty

Connection Type FPT

Pressure Setting 20-40 PSI

DC Electrical Rating 1hp @ 115/230V

Differential 20-40 PSI

Polyphase Electrical Rating 3hp @ 115V, 5hp @ 230V, 1hp @ 460/575V

Single Phase Electrical Rating 2hp @ 115V, 3hp @ 230V, 1hp @ 460/575V

Product Model Short Description Commercial / Light Industrial Pressure Switches

Dimensions
Width:  7.13 in
Height:  5.38 in
Length:  8.46 in
Weight:  7.83 lb
Certifications
N/A
