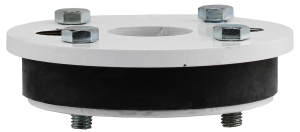

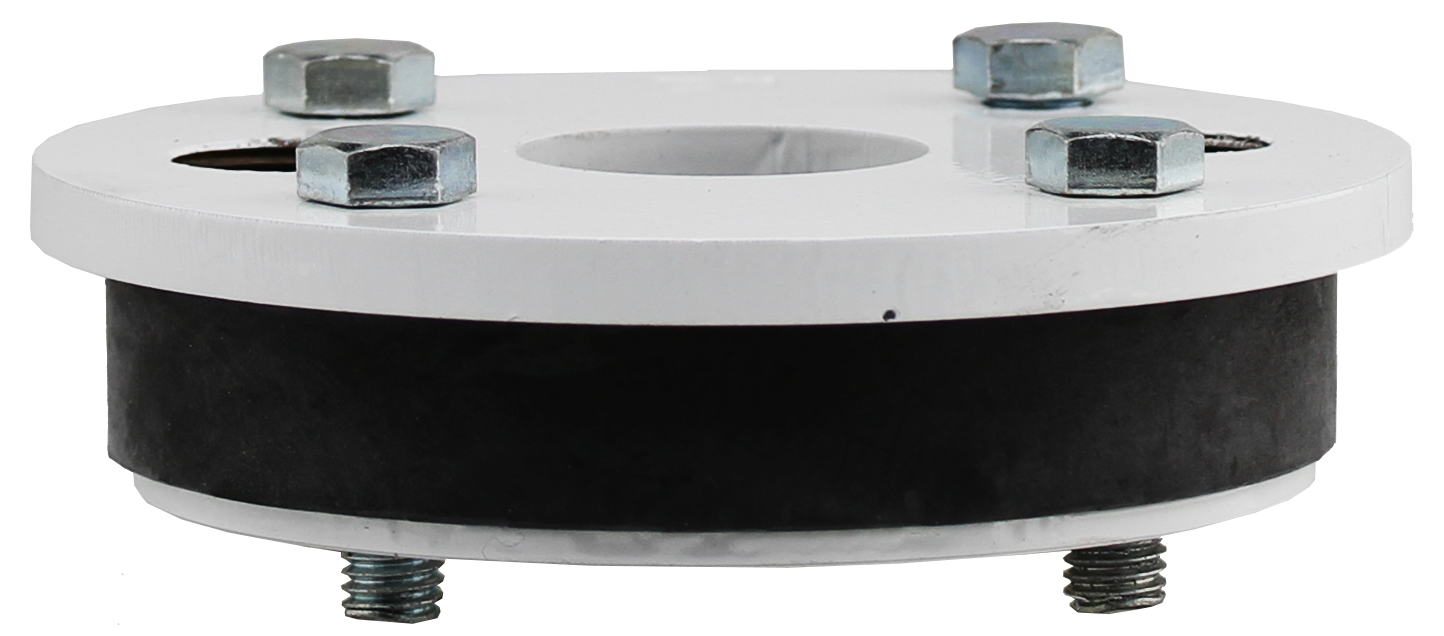

Steel Heavy Duty, Single Hole

Boshart’s steel well seals are solid and made from hot rolled steel. They are powder coated for a durable finish and have an extra thick rubber gland Styrene-Butadine Rubber (SBR) for positive sealing. These seals have large pump cable / wire holes for easy installation.
Eye bolt option is available by adding -EB to the end of the part number. Contact inside sales for more information.

WSS6010HD 1"
WSS6012HD 1-1/4"
WSS6015HD 1-1/2"
WSS6020HD 2"
WSS6030HD 3"

List Price A per unit WSS6010HD 1"

Ready to Order?

Contact a customer sales representative

Carton Qty: 8

UPC: 777808394593

Description • WSS6030HD has raised supports which the drop pipe fitting rests on, this keeps the fittings above the nuts and conduit bushing making it possible to incorporate a 1" cable hole.

Short Description For Submersible Pump Applications

Gasket O.D. 5.95 INCH

Size 6"

Vent Size 1/2"

Maximum Load 9000.00 POUND

Design Heavy Duty, Single Hole

Drop Pipe Size 1"

Well Casing I.D. 6" to 6-1/4"

Primary Material Steel

Conduit Connection 1" FPT

Top Plate Thickness 0.38 INCH

Product Model Short Description Steel Well Seals

Tech Sheet - WSS Series Tech Sheet

Width: 6.55 in

Height: 2.30 in

Length: 6.60 in

Weight: 6.09 lb

No Lead
