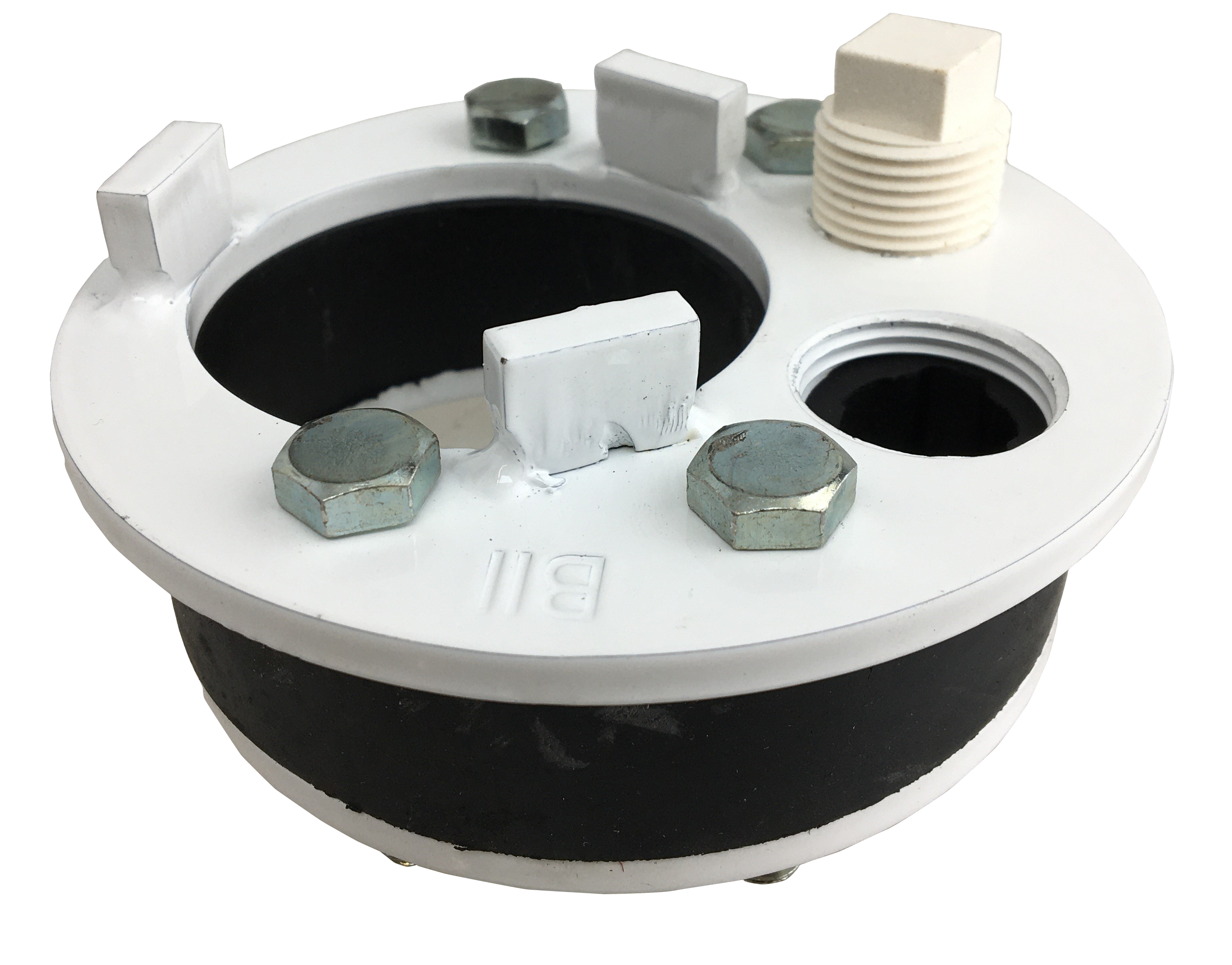

Steel Raised Supports, Single Hole

Boshart’s steel well seals are solid and made from hot rolled steel. They are powder coated for a durable finish and have an extra thick rubber gland Styrene-Butadine Rubber (SBR) for positive sealing. These seals have large pump cable / wire holes for easy installation.
Eye bolt option is available by adding -EB to the end of the part number. Contact inside sales for more information.

Available In
  • WSS4020  2"

List Price A per unit WSS4020  2"

$71.26

Contact a customer sales representative

Carton Qty: 12

UPC: 777808394494

Specifications

Description • This well seal has raised supports which the drop pipe fitting rests on, this keeps the fittings above the nuts and conduit bushing making it possible to incorporate a 3/4" cable hole.

Short Description For Submersible Pump Applications

Size 4"

Vent Size 1/2"

Design Raised Supports, Single Hole

Drop Pipe Size 2"

Well Casing I.D. 4" to 4-1/4"

Primary Material Steel

Conduit Connection 3/4" FPT

Product Model Short Description Steel Well Seals

Gasket O.D. 3.95 INCH

Maximum Load 2100.00 POUND

Top Plate Thickness 0.19 INCH

Dimensions
Width:  4.53 in
Height:  2.05 in
Length:  4.53 in
Weight:  1.76 lb
Certifications

No Lead
