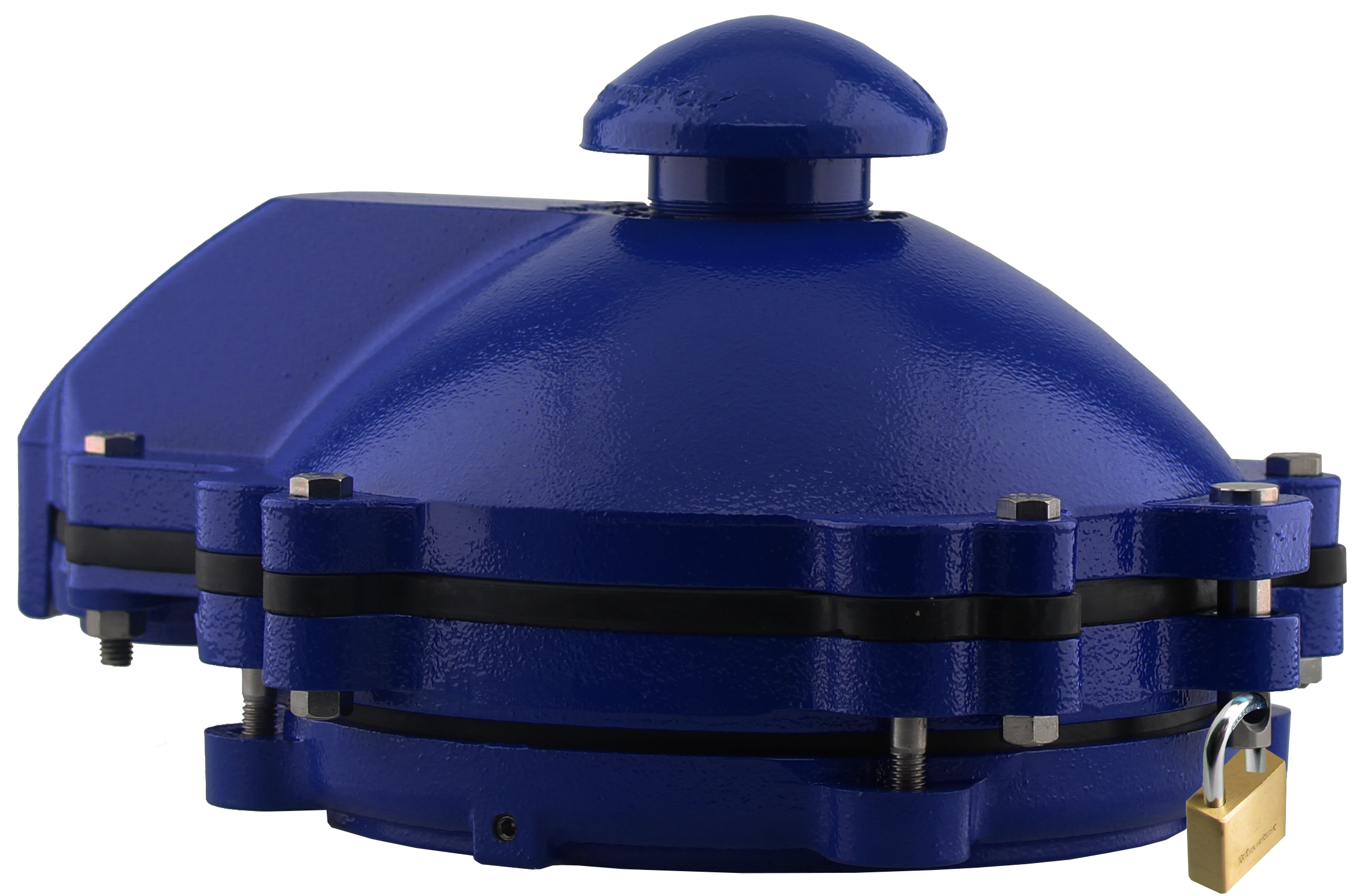

WTCL Series Premium Watertight Well Cap

Boshart’s premium watertight well cap installs fast & simply allowing for easy access to the well for maintenance. The three piece design allows the cover to be removed without disturbing the seal to the well casing, or interfering with the wiring / conduit. A blue powder coat paint is baked on to ensure superior quality.
It features a thick, heavy duty SBR gasket and a deep socket to ensure the watertight seal is down from the top of the well casing. All hardware is stainless steel for maximum corrosion resistance. This cap is supplied with a grounding terminal and the metal cap is bonded to the steel casing with set screws.
A 2″ mushroom venting cap with a steel mesh makes them vermin proof and a locking feature provides a secure/ tamper proof design. Lock is not included. Cap can be personalized by means of an engraved aluminum plate which is affixed by drive rivets.

Available In
  • WTCL-C08

undefined WTCL-C08

$939.74

Contact a customer sales representative

Carton Qty: 100

UPC: 777808403486

Specifications

SKU WTCL-C08

Short Description For Steel or PVC Well Casings

Air Vents (1) 2" MVC

Well Casing I.D. 8"

Well Casing O.D. 8-5/8"

Primary Material Cast Iron

Conduit Connection 2" FPT

Product Model Short Description WTCL Series Premium Watertight Well Cap

Dimensions
Width:  12.60 in
Height:  6.20 in
Length:  12.85 in
Weight:  29.81 lb
Certifications

No Lead
Water Systems Council
