1-1/2″ Filter

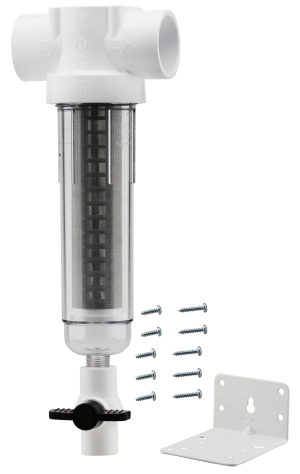

Boshart’s sediment filters and separators are great for agriculture, industrial/ commercial. pre-treatment, whole house residential and irrigation applications. They are compatible with both schedule 40 & 80 PVC pipe. 1/2″ MPT purge valve is installed to flush the system. These filters / separators can be installed on either the suction or pressure side of the pump. Each unit comes with an element, mounting bracket or clamps and hardware.
• PVC head & polycarbonate bowl.
• Gripper ribs on filter bowl (no tools required to install/remove bowl)

14SFHK-15SM024
Available In
  • 14SFHK-15SM024  0.03
  • 14SFHK-15SM030  0.02
  • 14SFHK-15SM040  0.02
  • 14SFHK-15SM060  0.01
  • 14SFHK-15SM100  0.01
  • 14SFHK-15SM140  0.00
  • 14SFHK-15SM200  0.00
  • 14SFHK-15SM250  0.00
  • 14SFHK-15SM500  0.00
  • 14SFHK-15SM1000  0.00

List Price A per unit 14SFHK-15SM024  0.03

$
Ready to Order?

Contact a customer sales representative

Carton Qty: 6

UPC: 777808502349

Specifications

Flow Rate 10-50 GPM

Mesh 24.00

Size 1-1/2"

Bowl Color Clear

Inlet Size 1-1/2"

Outlet Size 1-1/2"

Opening Size 0.03 INCH

Mesh Material 316 Stainless Steel

Micron Rating 711.00

Connection Type Slip

Temperature Range Up to 100°F (38°C) @ 40 PSI

Filter Housing Type Filter

Maximum Pressure Rating 150 PSI @ 73°F (23°C)

Product Model Short Description Sediment Filter & Separator Housing Kits

Documents

Tech Sheet - 1-1/2" Spin-Out Separator Housing and Kits

Dimensions
Width:  5.30 in
Height:  3.38 in
Length:  15.07 in
Weight:  1.70 lb
Certifications

No Lead
NSF / ANSI 372
