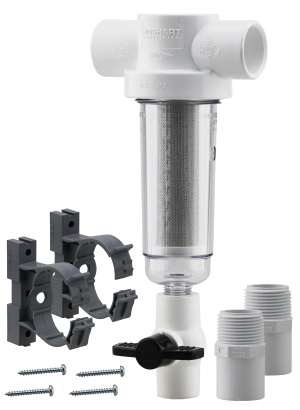

1″ or 1-1/4″ Filter with MPT Adapters

Boshart’s sediment filters and separators are great for agriculture, industrial/ commercial. pre-treatment, whole house residential and irrigation applications. They are compatible with both schedule 40 & 80 PVC pipe. 1/2″ MPT purge valve is installed to flush the system. These filters / separators can be installed on either the suction or pressure side of the pump. Each unit comes with an element, mounting bracket or clamps and hardware.
• PVC head & polycarbonate bowl.
• Gripper ribs on filter bowl (no tools required to install/remove bowl)

14SFHK-M10SM030
Available In
  • 14SFHK-M10SM030  0.02
  • 14SFHK-M10SM040  0.02
  • 14SFHK-M10SM060  0.01
  • 14SFHK-M10SM024  0.03
  • 14SFHK-M10SM100  0.01
  • 14SFHK-M10SM140  0.00
  • 14SFHK-M10SM200  0.00
  • 14SFHK-M10SM250  0.00
  • 14SFHK-M10SM500  0.00
  • 14SFHK-M10SM1000  0.00

List Price A per unit 14SFHK-M10SM030  0.02

$59.69
Ready to Order?

Contact a customer sales representative

Carton Qty: 8

UPC: 777808502035

Specifications

Description • Two 1" MPT adapters included

Flow Rate 1-25 GPM

Mesh 30.00

Size 1" or 1-1/4"

Bowl Color Clear

Inlet Size 1" or 1-1/4"

Outlet Size 1" or 1-1/4"

Opening Size 0.02 INCH

Mesh Material 316 Stainless Steel

Micron Rating 533.00

Connection Type Slip or Spigot

Temperature Range Up to 100°F (38°C) @ 40 PSI

Filter Housing Type Filter with MPT Adapters

Maximum Pressure Rating 150 PSI @ 73°F (23°C)

Product Model Short Description Sediment Filter & Separator Housing Kits

Documents

Tech Sheet - 1" Spin-Out housing kits with male adapters

Dimensions
Width:  4.97 in
Height:  3.12 in
Length:  7.41 in
Weight:  1.29 lb
Certifications

No Lead
NSF / ANSI 372
