Brass

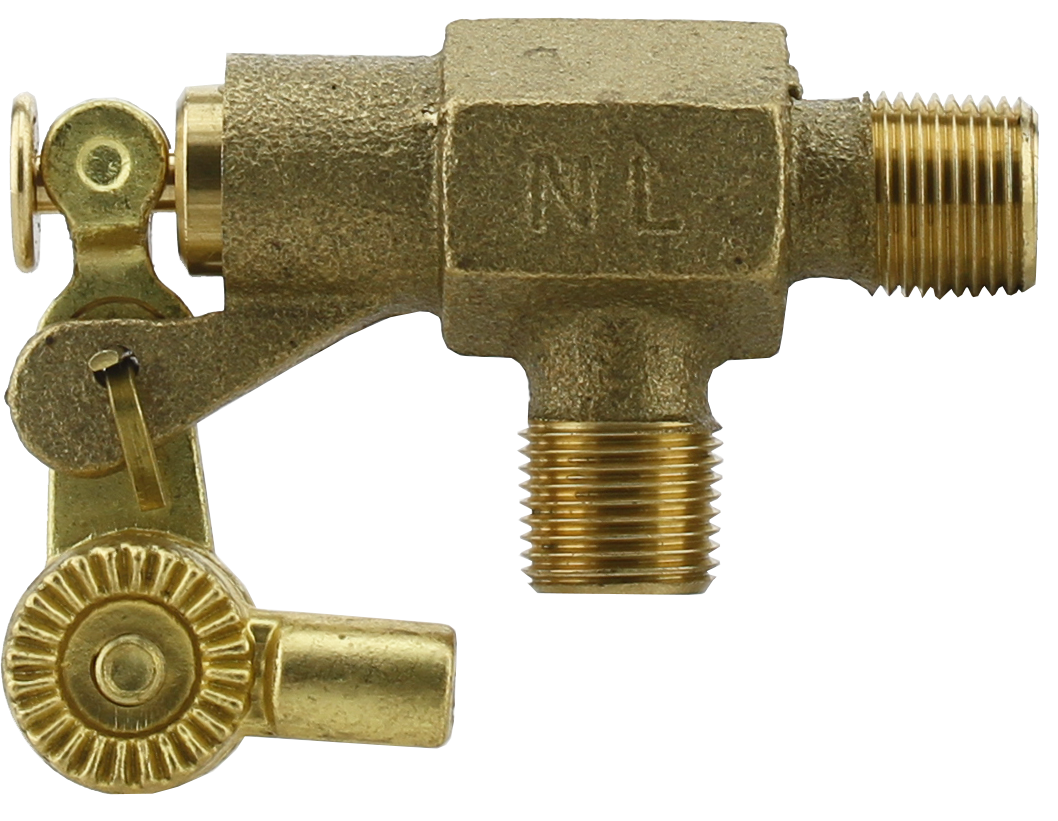

The most common use of a float valve is to control the filling of livestock water tanks and water tower cooling tanks as well as many other automatic tank filling applications.

28-BFV-03NL
Available In
  • 28-BFV-03NL  3/8"
  • 28-BFV-05NL  1/2"
  • 28-BFV-07NL  3/4"
  • 28-BFV-10NL  1"
  • 28-BFV-12NL  1-1/4"
  • 28-BFV-15NL  1-1/2"
  • 28-BFV-20NL  2"
  • 28-BHFV-05NL  1/2" or 3/8"
  • 28-BHFV-07NL  3/4" or 1/2"

List Price A per unit 28-BFV-03NL  3/8"

$23.60
Ready to Order?

Contact a customer sales representative

Carton Qty: 10

Case Qty: 100

UPC: 777808395828

Specifications

Description SMT connection is straight male thread with a gasket and nut

Inlet Size 3/8"

Outlet Size 3/8"

Design Standard

Rod Connection 1/4" - 20 SAE

Inlet Connection MPT

Primary Material Brass

Outlet Connection MPT

Temperature Range Up to 180°F (82°C)

Maximum Pressure Rating 125 PSI

Product Model Short Description Float Valves

Documents

Tech Sheet - No Lead Brass Float Valve - Threaded

Dimensions
Width:  2.25 in
Height:  1.20 in
Length:  3.60 in
Weight:  0.53 lb
Certifications

No Lead
NSF / ANSI 372

Need help? Call our support team at 1.800.561.3164
