Chrome Plated Supply Stops

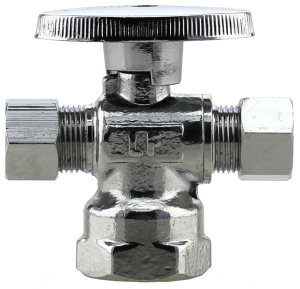

Dual Outlet

Supply stops are an excellent low pressure shut off valve generally found at the appliance. They come in different connections and configurations to meet all needs.

08SVD-05F03CPNL FPT x Compression
08SVD-58CP03CPNL Comp

List Price I per unit 08SVD-05F03CPNL FPT x Compression

$16.28

Ready to Order?

Contact a customer sales representative

Carton Qty: 20

Case Qty: 240

UPC: 777808453481

Size 1/2" x 3/8" x 3/8"

Design Dual Outlet

Seat Material PTFE

Connection Type FPT x Compression

Inlet Connection FPT

Primary Material Chrome Plated

Outlet Connection Comp

Temperature Range Up to 180°F (82°C)

Maximum Pressure Rating 125 PSI

Stem Packing Material EPDM

Product Model Short Description Chrome Plated Supply Stops

Tech Sheet - Brass Chrome Plated Dual Outlet Supply (Stop) Valve

Width: 2.15 in

Height: 1.00 in

Length: 2.30 in

Weight: 0.29 lb

ANSI / ASME B1.20.1
CSA B125.1 Certified
No Lead
NSF / ANSI 372
NSF / ANSI 61
SAE J512
