FPT Full Port No Lead

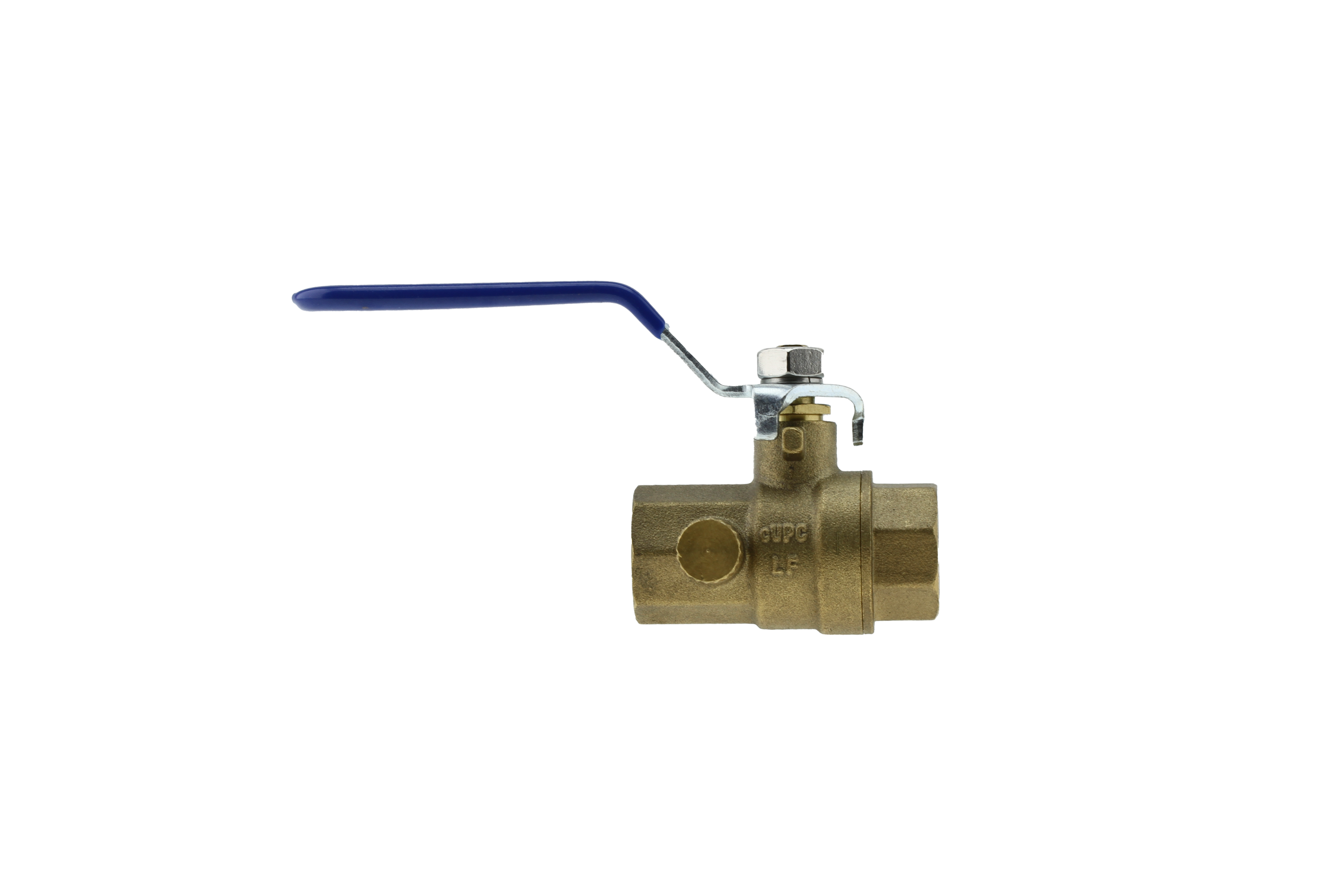

Boshart’s Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve. When installing one of these valves make sure the drain is not installed on the supply side of the valve.

Available In
  • 082WD-05NL  1/2"
  • 082WD-07NL  3/4"
  • 082WD-10NL  1"

List Price I per unit 082WD-05NL  1/2"

$18.01

Contact a customer sales representative

Carton Qty: 10

Case Qty: 120

UPC: 777808440672

Specifications

Ball Material Chrome Plated

Size 1/2"

Handle Type Rubber Grip

Design Full Port

Seat Material PTFE

Connection Type FPT

Primary Material Brass

Temperature Range Up to 300°F (149°C)

Maximum Pressure Rating 600 PSI WOG

Stem Packing Material PTFE

Product Model Short Description Brass Ball Valves with Drain

Port Size 0.59 INCH

Dimensions
Width:  2.40 in
Height:  1.70 in
Length:  4.85 in
Weight:  0.49 lb
Certifications

cUPC Standard IGC 157
No Lead
NSF / ANSI 372
NSF / ANSI 61
