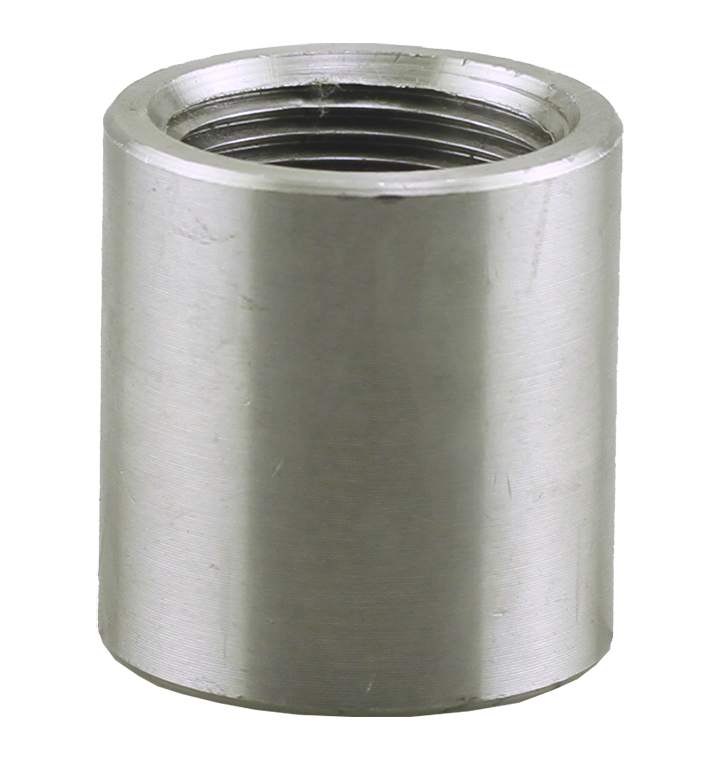

Machined Coupling

Boshart recommends using both Gray Stainless Steel PTFE Tape & Gray Magic Pipe Thread Compound together for joining stainless steel threaded fittings

Available In
  • SSH316MC-05  1/2"
  • SSH316MC-07  3/4"
  • SSH316MC-10  1"
  • SSH316MC-12  1-1/4"
  • SSH316MC-15  1-1/2"
  • SSH316MC-20  2"

List Price D per unit SSH316MC-05  1/2"

$15.67

Contact a customer sales representative

Carton Qty: 60

Case Qty: 240

UPC: 777808307982

Specifications

Description These couplings have a machined outside diameter and are supplied with NPT tapered threads for pressure connections. Used in both plumbing and structural applications where banded couplings are not desired, such as hand railings. They can be used for submersible pump installations up to 400 feet maximum. However, the use of a 28-SSDPC Series Heavy Duty Drop Pipe Coupling is highly recommended for a stronger pipe joint due to their design which provides additional thread engagement and are the choice for the professional pump installer, regardless of pump set depth.

Short Description 316 Stainless Steel Heavy Merchant Couplings

Size 1/2"

Fitting Type Machined Coupling

Connection Type FPT

Primary Material 316 Stainless Steel

Product Model Short Description Class 150 Heavy 316 Stainless Fittings - MSS SP114

Dimensions
Width:  1.06 in
Height:  1.06 in
Length:  1.52 in
Weight:  0.18 lb
Certifications

ANSI / ASME B1.20.1
ASTM A351
MSS SP114
No Lead
NSF / ANSI 372
