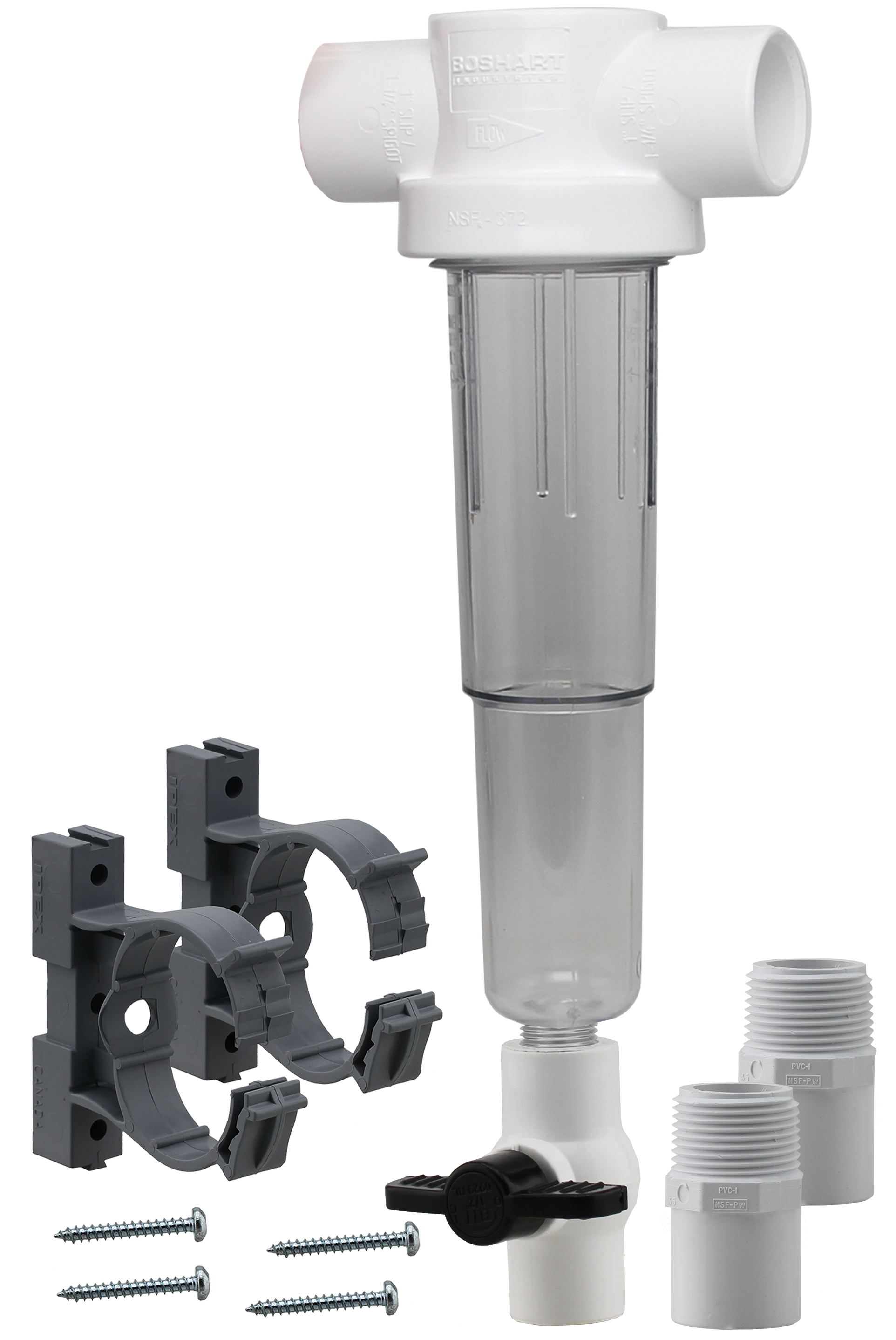

Separator with MPT Adapters

Boshart’s sediment filters and separators are great for agriculture, industrial/ commercial, pre-treatment, whole house residential and irrigation applications. They are compatible with both schedule 40& 80 PVC pipe. 1/2″ MPT purge valve is installed to flush the system. These filters / separators can be installed on either the suction or pressure side of the pump. Each unit comes with a mounting bracket or clamps and hardware.
• PVC head & polycarbonate bowl.
• Gripper ribs on filter bowl (no tools required to install/remove bowl)

Available In
  • 14SFHK-MS10  1" or 1-1/4"

List Price A per unit 14SFHK-MS10  1" or 1-1/4"

$53.76

Contact a customer sales representative

Carton Qty: 6

UPC: 777808507719

Specifications

Description • Two 1" MPT adapters included

Flow Rate 1-25 GPM

Size 1" or 1-1/4"

Bowl Color Clear

Inlet Size 1" or 1-1/4"

Outlet Size 1" or 1-1/4"

Connection Type Slip or Spigot

Temperature Range Up to 100°F (38°C) @ 40 PSI

Filter Housing Type Separator with MPT Adapters

Maximum Pressure Rating 150 PSI @ 73°F (23°C)

Product Model Short Description Sediment Filter & Separator Housings

Dimensions
Width:  4.97 in
Height:  3.12 in
Length:  7.41 in
Weight:  1.16 lb
Certifications

No Lead
NSF / ANSI 372
