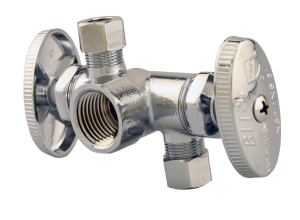

Dual Outlet Dual Shut-Off

Supply stops are an excellent low pressure shut off valve generally found at the appliance. They come in different connections and configurations to meet all needs.

08SVDD-05F03CPNL
Available In
  • 08SVDD-05F03CPNL  FPT x Compression
  • 08SVDD-58CP03CPNL  Comp

List Price A per unit 08SVDD-05F03CPNL  FPT x Compression

$34.21
Ready to Order?

Contact a customer sales representative

Carton Qty: 10

Case Qty: 120

UPC: 777808470167

Specifications

Size 1/2" x 3/8"

Design Dual Outlet Dual Shut-Off

Seat Material PTFE

Connection Type FPT x Compression

Inlet Connection FPT

Primary Material Chrome Plated

Outlet Connection Comp

Temperature Range Up to 180°F (82°C)

Maximum Pressure Rating 125 PSI

Stem Packing Material EPDM

Product Model Short Description Chrome Plated Supply Stops

Documents

Tech Sheet - Brass Chrome Plated Dual Outlet Dual Shutoff Supply (Stop) Valve - Multi Turn

Dimensions
Width:  2.36 in
Height:  1.42 in
Length:  3.94 in
Weight:  0.17 lb
Certifications

ANSI / ASME B1.20.1
CSA B125.1 Certified
No Lead
NSF / ANSI 372
NSF / ANSI 61
SAE J512
